| BLR/MG 系列电磁阀（用于R410A） |
描述
BLR/MG 系列电磁阀是专门为R410A制冷剂开发的新型电磁阀，用于液管路、吸气管路和热蒸汽管路，也可用于其他氟化物。
特点
◆BLR/MG 型电磁阀是伺服式电磁阀，用于氟化物制冷剂的液管路、吸气管路和热蒸汽管路。
◆电磁阀适用于冷藏、冷冻、空调装置。
◆有多种交流电压AC和直流电压DC线圈供选择
◆适用于R410A及其它HCFC、HFC制冷剂（R717除外）和相容的润滑油
◆工作压差范围：
交流：0.05-30bar
直流：0.05-24bar
◆最高工作压力：45bar
◆适用工质温度：40℃ to +105℃
◆使用环境温度：-40℃ to +55℃
技术参数

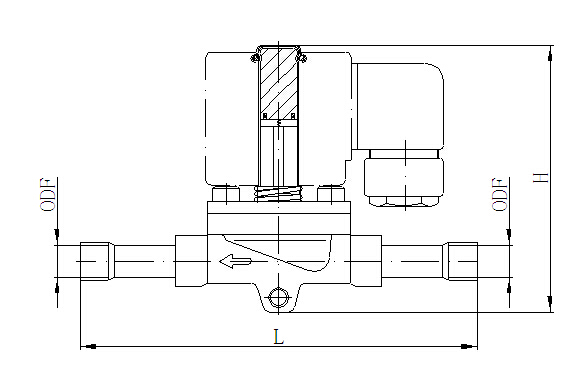

| Model | Connection | H1 | H2 | L1 | Q | KV Factor KV （m3/h） | ||||
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | |||
| BLR/MSV-1020/2 | 1/4"SAE | 3.0 | 75 | 2.5 | 62.5 | 2.3 | 58 | - | - | 0.175 |
| BLR/MSV-1020/3 | 3/8"SAE | 3.0 | 75 | 2.5 | 62.5 | 2.6 | 65 | - | - | 0.23 |
| BLR/MSV-1028/2 | 1/4"ODF | 3.0 | 75 | 2.5 | 32.5 | 4.9 | 125 | - | - | 0.15 |
| BLR/MSV-1028/3 | 3/8"ODF | 3.0 | 75 | 2.5 | 62.5 | 4.9 | 125 | - | - | 0.23 |
| BLR/MSV-1064/3 | 3/8"SAE | 3.2 | 82 | 2.7 | 69.5 | 2.6 | 68 | - | - | 0.8 |
| BLR/MSV-1064/4 | 1/2"SAE | 3.2 | 82 | 2.7 | 69.5 | 2.8 | 72 | - | - | 0.8 |
| BLR/MSV-1068/3 | 3/8"ODF | 3.2 | 82 | 2.7 | 69.5 | 4.5 | 111 | - | - | 0.8 |
| BLR/MSV-1068/4 | 1/2"ODF | 3.2 | 82 | 2.7 | 69.5 | 5.0 | 127 | - | - | 0.8 |
| BLR/MSV-1070/4 | 1/2"SAE | 3.6 | 91 | 3.0 | 75.0 | 3.9 | 100 | 1.8 | 45 | 2.2 |
| BLR/MSV-1070/5 | 5/8"SAE | 3.6 | 91 | 3.0 | 75.0 | 4.2 | 106 | 1.8 | 45 | 2.61 |
| BLR/MSV-1078/4 | 1/2"ODF | 3.6 | 91 | 3.0 | 75.0 | 5.0 | 127 | 1.8 | 45 | 2.2 |
| BLR/MSV-1078/5 | 5/8"ODF | 3.6 | 91 | 3.0 | 75.0 | 6.9 | 173 | 1.8 | 45 | 2.61 |
| BLR/MSV-1078/9 | 1 1/8"ODF | 4.5 | 115 | 3.8 | 96.0 | 9.8 | 250 | 3.1 | 80 | 10 |
| BLR/MSV-1078/11 | 1 3/8"ODF | 6.8 | 172 | 5.4 | 138.0 | 10.9 | 278 | 2.8 | 68 | 16 |
| BLR/MSV-1090/5 | 5/8"SAE | 4.2 | 106 | 3.0 | 78.0 | 1.7 | 120 | 2.2 | 57 | 3.8 |
| BLR/MSV-1090/6 | 3/4"SAE | 4.2 | 106 | 3.0 | 78.0 | 4.9 | 124 | 2.2 | 57 | 4.8 |
| BLR/MSV-1079/7 | 7/8"ODF | 3.6 | 91 | 3.0 | 75.0 | 7.5 | 190 | 1.8 | 45 | 2.61 |
| BLR/MSV-1079/11 | 1 3/8"ODF | 4.5 | 115 | 3.8 | 96.0 | 11.5 | 292 | 3.1 | 80 | 10 |
| BLR/MSV-1079/13 | 1 5/8"ODF | 6.8 | 172 | 5.4 | 138.0 | 10.9 | 278 | 2.8 | 68 | 16 |
| BLR/MSV-1098/7 | 7/8"ODF | 4.2 | 106 | 3.0 | 78.0 | 7.1 | 180 | 2.2 | 57 | 5.7 |
| BLR/MSV-1099/9 | 1 1/8"ODF | 4.2 | 106 | 3.0 | 78.0 | 8.5 | 216 | 2.2 | 57 | 5.7 |
| BLR/MSV-1099/11 | 1 3/8"ODF | 6.2 | 157 | 5.0 | 127.0 | 10.9 | 291 | 2.8 | 68 | 10 |
| Refrigerant | CFC,HCFC,HFC | ||||||
| Media Temperature | -35 to +105℃ | ||||||
| Service Life | 100000 cycles | ||||||
| Max.Opening Pressure | 2.5 MPa | ||||||
| Min.Opening Pressure | 0.05 MPa | ||||||
| Working Pressure | 3.0 MPa | ||||||
