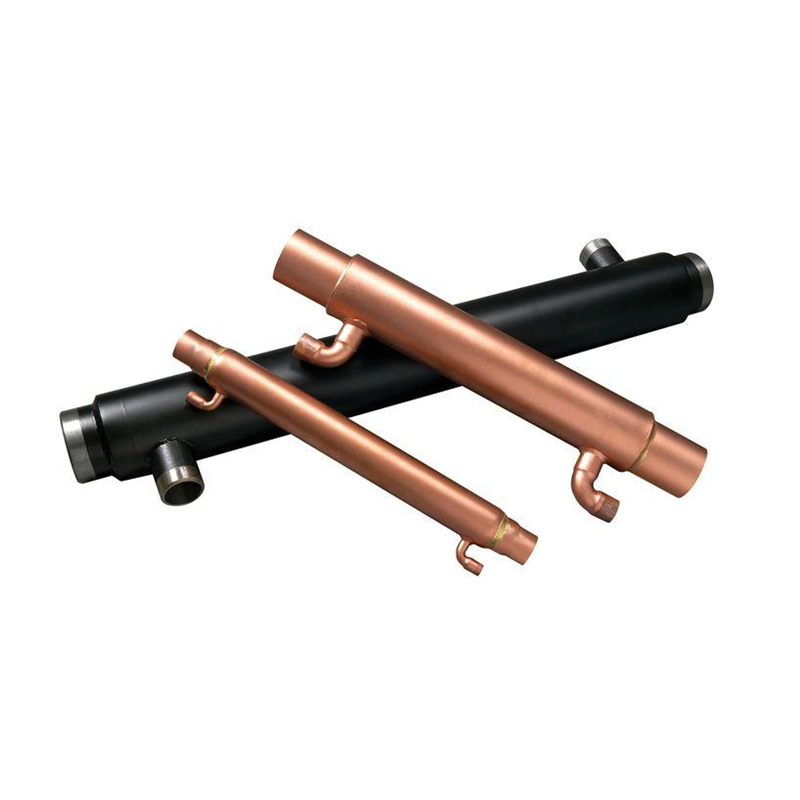

| BLR/SLHE 经济器 |
名义上BLR/SLHE的选择应该基于系统马力，这将为R-22, R-502, R-404A, R-507, R-407A, R-504, R-134A, R-407C和R-410A提供公称过冷度10oF和公称吸力过热度20oF的冷凝和吸力25oF。例如，对于1-1/2 HP系统，选择BLR/SLHE 1-1/2。不要选择尺寸过小的型号，以避免高吸入压降和气体呼啸。根据吸入和液体管路尺寸的选择适用于标准的低、中、高温制冷系统，前提是系统的HP等级与BLR/SLHE选择密切匹配。超大型号的选择将提供额外的液体过冷和吸入过热。只有当压缩机的吸入气体温度不高于65oF时，才能接受超大型号的压缩机。Doucette可选择标准和定制型号，以满足任何性能标准，最高可达60oF过冷度。如需精确过冷和过热性能，请与工厂联系。典型应用演示:用于提高蒸发器容量，系统稳定性，压缩机保护和回油。·超级市场案例应用·抽吸管道换热器切开式·抽吸管道换热器
技术参数
| Model | Capacity (HP) | Gas Connection (Inch) | Liquid Connection (Inch) | Length (Inch) | DWP (Psig) | Weight (Lbs) |
| BLR/SLHE 1/2 | 1/2 | 1/2 " | 1/4 " | 11 1/2 " | 500 psig | 1 lbs |
| BLR/SLHE 3/4 | 3/4 | 5/8 " | 3/8 " | 11 3/4 " | 500 psig | 2 lbs |
| BLR/SLHE 1 | 1 | 5/8 " | 3/8 " | 13 3/4 " | 700 psig | 2 lbs |
| BLR/SLHE 1 1/2 | 1 1/2 | 7/8 " | 3/8 " | 14 1/2 " | 700 psig | 3 lbs |
| BLR/SLHE 2 | 2 | 1 1/8 " | 3/8 " | 15 " | 400 psig | 3 lbs |
| BLR/SLHE 3 | 3 | 1 1/8 " | 1/2 " | 15 " | 700 psig | 3 lbs |
| BLR/SLHE 5 | 5 | 1 3/8 " | 5/8 " | 14 1/4 " | 633 psig | 4 lbs |
| BLR/SLHE 7 1/2 | 7 1/2 | 1 5/8 " | 5/8 " | 17 " | 633 psig | 4 lbs |
| BLR/SLHE 10 | 10 | 2 1/8 " | 7/8 " | 18 " | 400 psig | 8 lbs |
| BLR/SLHE 15 | 15 | 2 1/8 " | 7/8 " | 25 " | 400 psig | 12 lbs |
| BLR/SLHE 20 | 20 | 2 1/8 " | 1 1/8 " | 27 " | 400 psig | 13 lbs |
| BLR/SLHE 20 HP | 20 | 2 1/8 " | 1 1/8 " | 30 7/8 " | 700 psig | 15 lbs |
| BLR/SLHE 25 | 25 | 2 5/8 " | 1 1/8 " | 28 7/8 " | 450 psig | 15 lbs |
| BLR/SLHE 30/35 | 30 | 2 5/8 " | 1 3/8 " | 28 7/8 " | 450 psig | 16 lbs |
| BLR/SLHE 40 | 40 | 3 1/8 " | 1 3/8 " | 28 7/8 " | 450 psig | 20 lbs |
| BLR/SLHE 50 | 50 | 3 1/8 " | 1 5/8 " | 28 7/8 " | 450 psig | 20 lbs |
| BLR/SLHE 60 | 60 | 4 1/8 " | 1 5/8 " | 29 7/8 " | 450 psig | 44 lbs |
| BLR/SLHE 75/80 | 75 | 4 1/8 " | 2 1/8 " | 29 7/8 " | 450 psig | 45 lbs |
| BLR/SLHE 100/125 | 100 | 5 1/8 " | 2 1/8 " | 30 7/8 " | 360 psig | 54 lbs |
| BLR/SLHE 150 | 150 | 6 1/8 " | 2 5/8 " | 30 7/8 " | 360 psig | 55 lbs |
