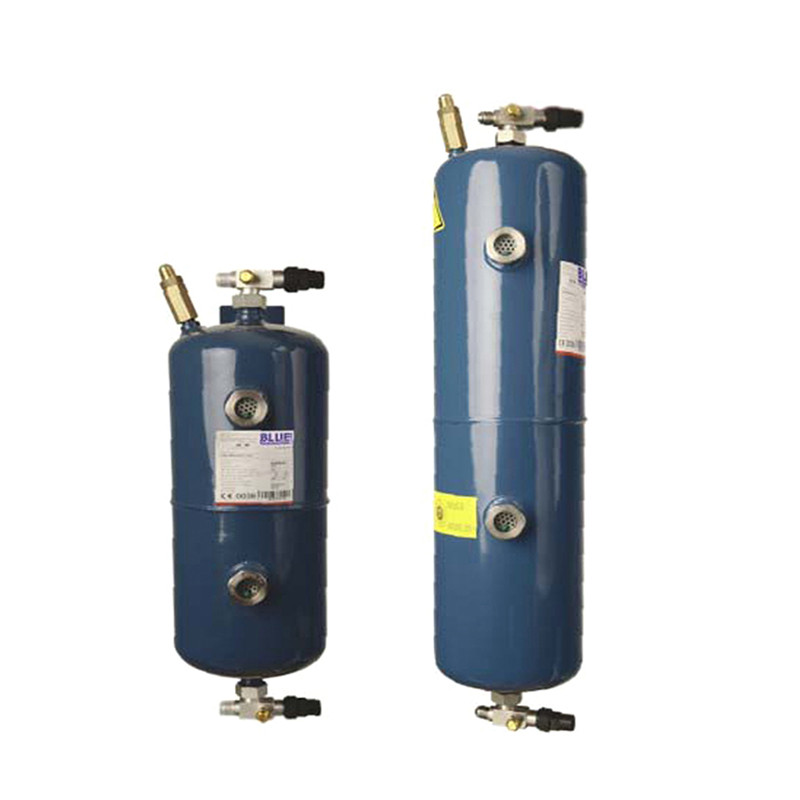

| BLR/VOR 立式储液器 |
储油器是一种储存罐，它通过油位调节把油分离器的油收集起来提供给压缩机。储油器可以立刻阻止由压缩机内的油流动而引起的油回流到油位平衡器和曲轴箱中。安装储油器时，必须高于压缩机。如果储油器里面的油少于试液镜在储油器.上的位置时，请加油。
.
技术参数

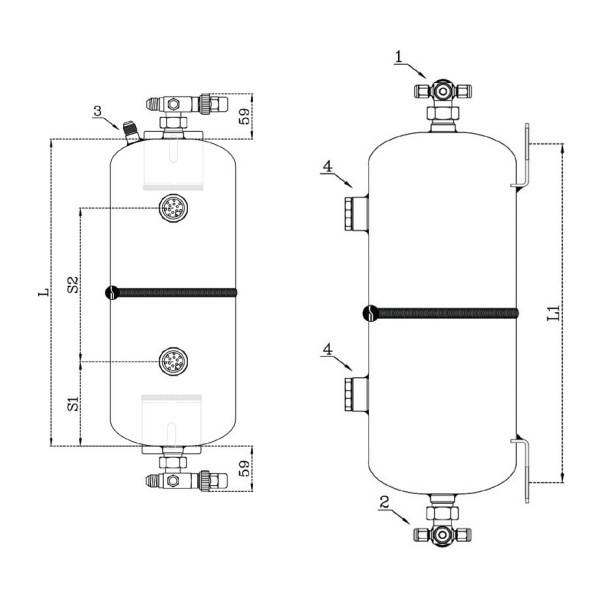

Model | Connection | Volume | Dimensions（mm） | ||||
D | L | S1 | S2 | L1 | |||
BLR/VOR-04038 | 3/8 | 4 | 140 | 290 | 85 | 130 | 290 |
BLR/VOR-06038 | 3/8 | 6 | 160 | 340 | 100 | 150 | 330 |
BLR/VOR-08038 | 3/8 | 8 | 180 | 370 | 110 | 170 | 330 |
BLR/VOR-10038 | 3/8 | 10 | 220 | 450 | 130 | 210 | 410 |
BLR/VOR-12038 | 3/8 | 12 | 220 | 345 | 100 | 155 | 320 |
BLR/VOR-14038 | 3/8 | 14 | 220 | 395 | 110 | 195 | 370 |
BLR/VOR-16038 | 3/8 | 16 | 220 | 465 | 150 | 185 | 440 |
BLR/VOR-18038 | 3/8 | 18 | 220 | 525 | 150 | 235 | 500 |
BLR/VOR20038 | 3/8 | 20 | 220 | 550 | 150 | 250 | 525 |
TECHNICAL DATA | ||||
Working Pressure [PS] | 33 Bar | |||
Test Pressure [PT] | 48 Bar | |||
Allowable Temperature [TS] | Min. - 10°C / Max.-130°C | |||
Color [RAL] | 5009 | |||
General Tolerans [mm] | ± 3 | |||
