| BLR/MSV膜片式电磁阀 |
描述
BLR膜片式电磁阀是制冷系统中控制制冷介质通、断和实现制冷系统自动化控制的自控元件，广泛应用于制冷压缩机组、中央空调、冷冻冷藏设备、大巴空调等管路系统中。
特点
适用于所有的氟化物制冷剂
多种交流和直流电磁阀线圈的宽阔选择
可用于冷藏、冷冻、空气调节装置和各种场合
用于焊接连接的加长接口使安装简便，当焊接时不需要拆除阀体。
| Refrigerant | CFC,HCFC,HFC | ||||||
| Media Temperature | -35 to +105℃ | ||||||
| Service Life | 100000 cycles（次） | ||||||
| Max.Opening Pressure | 2.5 MPa | ||||||
| Min.Opening Pressure | 0.05 MPa | ||||||
| Working Pressure | 3.0 MPa | ||||||

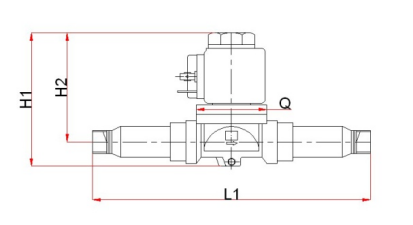

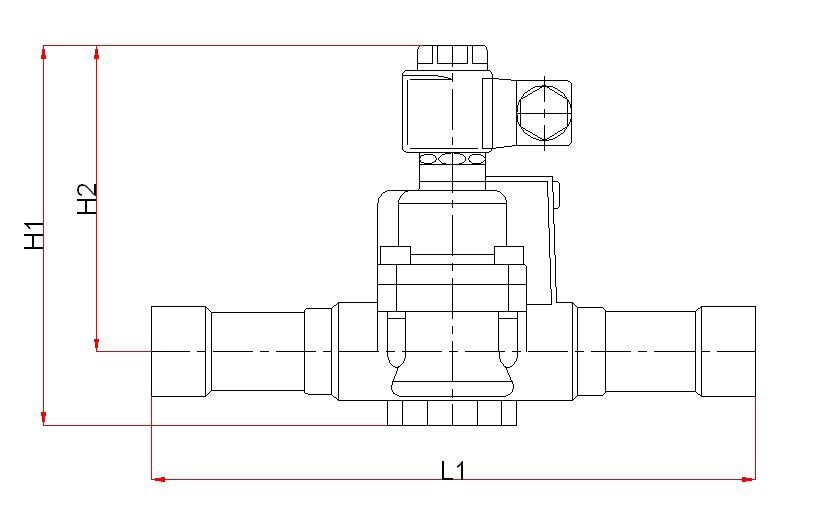

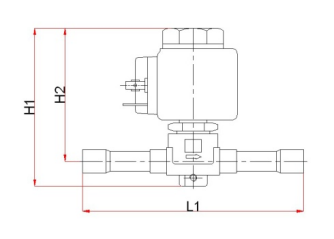

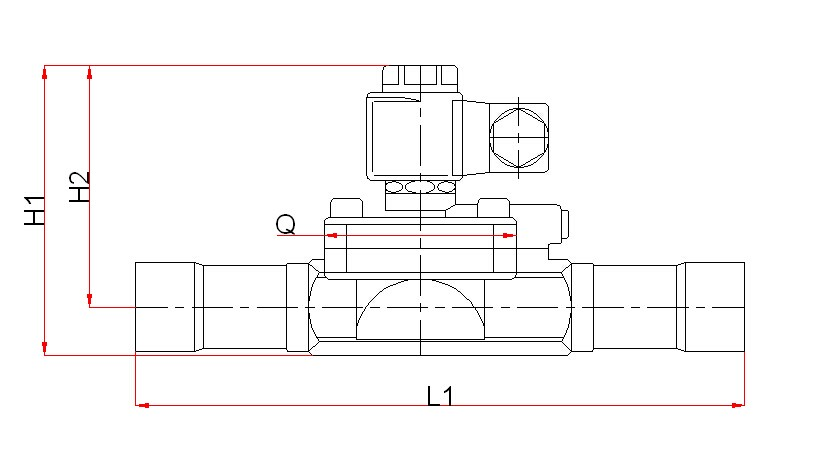

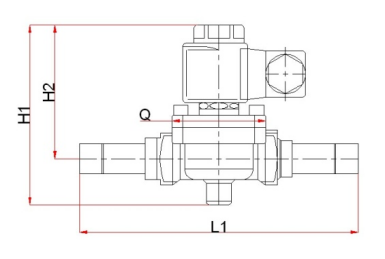

| Model | Connection | H1 | H2 | L1 | Q | KV Factor KV （m3/h） | ||||
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | |||
| BLR/MSV-1020/2 | 1/4"SAE | 3.0 | 75 | 2.5 | 62.5 | 2.3 | 58 | - | - | 0.175 |
| BLR/MSV-1020/3 | 3/8"SAE | 3.0 | 75 | 2.5 | 62.5 | 2.6 | 65 | - | - | 0.23 |
| BLR/MSV-1028/2 | 1/4"ODF | 3.0 | 75 | 2.5 | 32.5 | 4.9 | 125 | - | - | 0.15 |
| BLR/MSV-1028/3 | 3/8"ODF | 3.0 | 75 | 2.5 | 62.5 | 4.9 | 125 | - | - | 0.23 |
| BLR/MSV-1064/3 | 3/8"SAE | 3.2 | 82 | 2.7 | 69.5 | 2.6 | 68 | - | - | 0.8 |
| BLR/MSV-1064/4 | 1/2"SAE | 3.2 | 82 | 2.7 | 69.5 | 2.8 | 72 | - | - | 0.8 |
| BLR/MSV-1068/3 | 3/8"ODF | 3.2 | 82 | 2.7 | 69.5 | 4.5 | 111 | - | - | 0.8 |
| BLR/MSV-1068/4 | 1/2"ODF | 3.2 | 82 | 2.7 | 69.5 | 5.0 | 127 | - | - | 0.8 |
| BLR/MSV-1070/4 | 1/2"SAE | 3.6 | 91 | 3.0 | 75.0 | 3.9 | 100 | 1.8 | 45 | 2.2 |
| BLR/MSV-1070/5 | 5/8"SAE | 3.6 | 91 | 3.0 | 75.0 | 4.2 | 106 | 1.8 | 45 | 2.61 |
| BLR/MSV-1078/4 | 1/2"ODF | 3.6 | 91 | 3.0 | 75.0 | 5.0 | 127 | 1.8 | 45 | 2.2 |
| BLR/MSV-1078/5 | 5/8"ODF | 3.6 | 91 | 3.0 | 75.0 | 6.9 | 173 | 1.8 | 45 | 2.61 |
| BLR/MSV-1078/9 | 1 1/8"ODF | 4.5 | 115 | 3.8 | 96.0 | 9.8 | 250 | 3.1 | 80 | 10 |
| BLR/MSV-1078/11 | 1 3/8"ODF | 6.8 | 172 | 5.4 | 138.0 | 10.9 | 278 | 2.8 | 68 | 16 |
| BLR/MSV-1090/5 | 5/8"SAE | 4.2 | 106 | 3.0 | 78.0 | 1.7 | 120 | 2.2 | 57 | 3.8 |
| BLR/MSV-1090/6 | 3/4"SAE | 4.2 | 106 | 3.0 | 78.0 | 4.9 | 124 | 2.2 | 57 | 4.8 |
| BLR/MSV-1079/7 | 7/8"ODF | 3.6 | 91 | 3.0 | 75.0 | 7.5 | 190 | 1.8 | 45 | 2.61 |
| BLR/MSV-1079/11 | 1 3/8"ODF | 4.5 | 115 | 3.8 | 96.0 | 11.5 | 292 | 3.1 | 80 | 10 |
| BLR/MSV-1079/13 | 1 5/8"ODF | 6.8 | 172 | 5.4 | 138.0 | 10.9 | 278 | 2.8 | 68 | 16 |
| BLR/MSV-1098/7 | 7/8"ODF | 4.2 | 106 | 3.0 | 78.0 | 7.1 | 180 | 2.2 | 57 | 5.7 |
| BLR/MSV-1099/9 | 1 1/8"ODF | 4.2 | 106 | 3.0 | 78.0 | 8.5 | 216 | 2.2 | 57 | 5.7 |
| BLR/MSV-1099/11 | 1 3/8"ODF | 6.2 | 157 | 5.0 | 127.0 | 10.9 | 291 | 2.8 | 68 | 10 |
